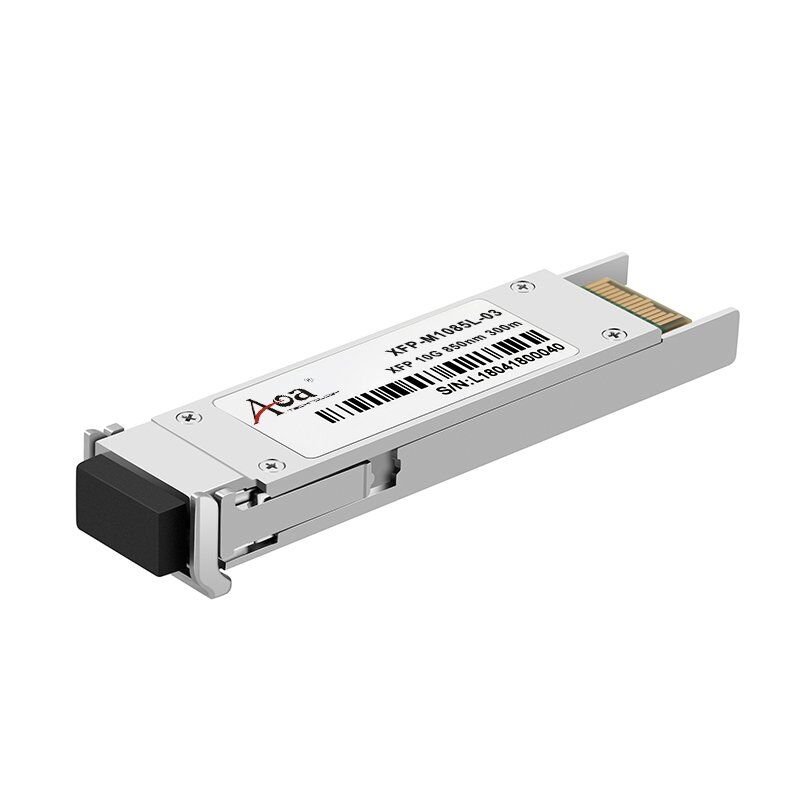

XFP-M1085L-03 10G XFP Module 300M

Optical XFP Module

10Gbps XFP SR Transceiver MM 850nm 300M LC

Share on


10Gbps XFP SR Transceiver MM 850nm 300M LC



  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Uncooled 850nm VCSEL laser
  • Maximum link length 300mover OM3 MM Fiber
  • XFP MSA package with duplex LC connector
  • Hot-pluggable XFP footprint, Built-in digital diagnose
  • No reference clock required
  • Single +3.3V power supply
  • Power dissipation <1.5W
  • Compatible with RoHS
  • Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃



  • 10GBASE-SR/SW 10G Ethernet
  • 1200-Mx-SN-I 10G Fiber Channel



  • Compliant with XFP MSA
  • Compliant with SFF-8472
  • Compliant withIEEE 802.3ae



The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.95~11.3Gbps, and transmission distance up to 300m on OM3 MMF.

The transceiver module comprises a transmitter with 850nm VCSEL laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.4 +4 V
Storage Temperature Ts -40 +85 °C
Operating Humidity 5 85 %


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Industrial -40 +85 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc 640 mA
Data Rate 10.3 11.3 Gbps
Fiber Length 50μm core MMF 300 m


Ordering information

Model No. Product Description
XFP-M1085L-03 10Gbps, 850nm, MMF, 300m, 0ºC ~ +70ºC, with DDM
XFP-M1085L-03I 10Gbps, 850nm, MMF, 300m, -40°C~+85°C, with DDM
