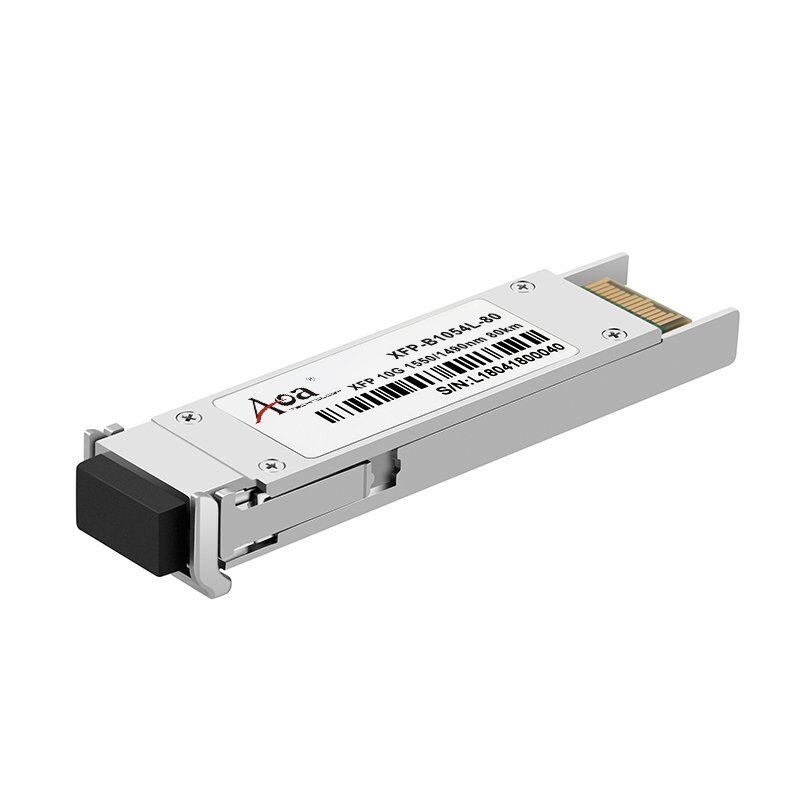

XFP-B1054L-80 10G XFP Module Bidi 80KM
Optical XFP Module
10Gbps XFP Transceiver Bi-Di TX1550/RX1490nm 80KM LC
Share on
XFP-B1054L-80
10Gbps XFP Transceiver Bi-Di TX1550/RX1490nm 80KM LC
Features
- Supports 9.95Gbps to 11.3Gbps bit rates
- 1550nm EML laser and APD receiver
- Up to 80km for SMF transmission
- Hot-pluggable XFP footprint
- XFI Loopback Mode
- Compliant with XFP MSA with single LC receptacle
- 2-wire interface with integrated Digital Diagnostic monitoring
- EEPROM with Serial ID Functionality
- Single +3.3V power supply
- Power dissipation <2.5W
- Compatible with RoHS
- Operating case temperature: Commercial: 0℃ to +70℃ Industrial: -40℃ to +85℃
Application
- 10GBASE-BX 10.3125Gb/s Ethernet
- 10GBASE-BX 9.953Gb/s Ethernet
- SONET OC-192 SR-1 SDH STM I-64.1
Standard
- Compliant with XFP MSA
- Compliant with SFF-8472
- Compliant with IEEE 802.3ae
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | 0 | 4 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Operating Case Temperature | Standard | Tc | 0 | +70 | °C | |
| Industrial | -40 | +85 | °C | |||
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Power Supply Current | Icc | 850 | mA | |||
| Data Rate | 9.95 | 10.3 | 11.3 | Gbps | ||
| Transmission Distance | – | 80 | km | |||
Ordering information
| Model No. | Product Description |
| XFP-B1054L-80 | 10Gbps, Bidi TX1550/RX1490nm, SMF, 80km, 0ºC ~ +70ºC, with DDM |
| XFP-B1054L-80I | 10Gbps, Bidi TX1550/RX1490nm, SMF, 80km, -40°C~+85°C, with DDM |
