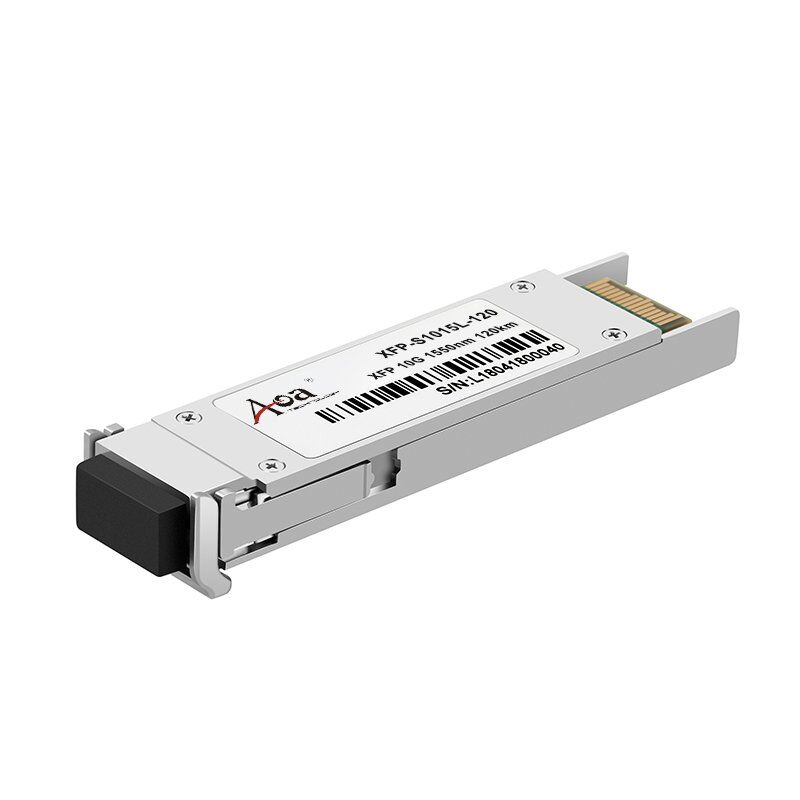

XFP-S1015L-120 10G XFP Module 120KM
Optical XFP Module
10Gbps XFP Transceiver SM 1550nm 120km LC
Share on
XFP-S1015L-120
10Gbps XFP Transceiver SM 1550nm 120km LC
Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- 1550nm Cooled EML laser and APD photodiode
- Maximum link length of 120km with SMF
- XFP MSA package with duplex LC connector
- Hot-pluggable XFP footprint, Built-in digital diagnose
- No reference clock required
- Single +3.3V power supply
- Power dissipation <3.5W
- Compatible with RoHS
- Operating case temperature: Commercial: 0℃ to +70℃ Industrial: -40℃ to +85℃
Application
- 10GBASE-ZR/ZW 10G Ethernet
- 10G Fiber Channel
- SONET OC-192 &SDH STM 64
Standard
- Compliant with XFP MSA
- Compliant with SFF-8472
- Compliant with IEEE 802.3ae
Description
The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.95~11.3Gbps, and transmission distance up to 120km on SMF.
The transceiver module comprises a transmitter with 1550nm Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Power Supply Voltage | Vcc3 | -0.3 | +3.6 | V |
| Power Supply Voltage | Vcc2 | -0.3 | +2.0 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature (Commercial) | Tc | 0 | +70 | °C | |
| Power Supply Voltage | Vcc | 3.13 | 3.30 | 3.47 | V |
| Power Supply Current | Icc | 760 | mA | ||
| Data Rate | 10.3 | 11.3 | Gbps | ||
| Transmission Distance | – | 120 | – | km |
Ordering information
| Model No. | Product Description |
| XFP-S1015L-120 | 10Gbps, 1550nm, SMF, 120km, 0ºC ~ +70ºC, with DDM |
