Gigabit Ethernet Media Converter

10/100/1000Base-T to 100/1000Base-X, LFPT



Overview

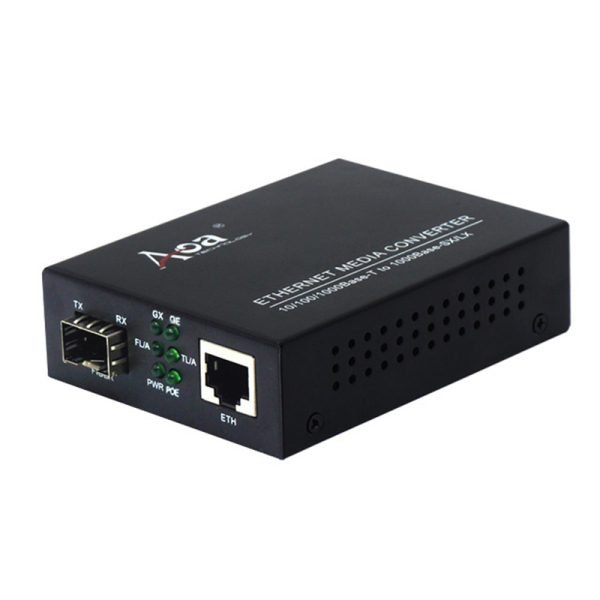

AOM-2100D is Gigabit Ethernet Media Converters, which extend the 10,100 and 1000Mbbps twisted-pair network segments up to 120km over fiber technology. Supporting 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, SFP/SC/FC/ST interface optional, and also SFP Slot support 1.25G/155M SFP modules with auto-negotiation function.

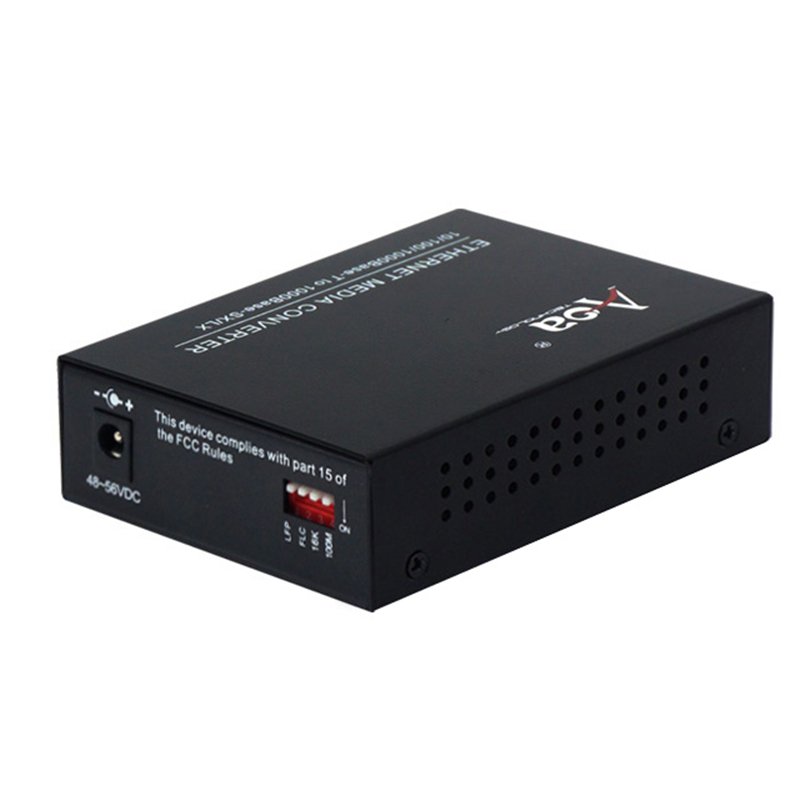

AOM-2100D is with DIP switch to set the LFPT function. Link fault pass-through (LFPT) is the function of media converters. This function prevents data loss in case of link failure. The media converters feature a pair of hetero links, such as a pair of copper links and fiber links. In cases of high data traffic, return losses, etc, the copper or fiber link may fail.

Features

• Copper port support auto-negotiation, auto-MDI/MDI-X
• SFP port provides 25G/155M auto-negotiation
• Full duplex and Half duplex back pressure auto-negotiation
• LFPT function
• 16K Jumbo Frame
• LED indicators for working status
• Wide range power input
• ESD,surge protection
• IP30 enclosure
• Chassis Mounted, Wall-mounted Installationwith optional kits
• Low power consumption, lead-free process
• CE/FCC/ROHS compliance



Application

• Network Communication
• FTTH / FTTB / FTTx
• ISP Backhaul Networking



Technical Specifications

Model	AOM-2100D
Performance
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x
Processing type	Store and Forward
MAC address	2k
Buffer Space	718k
Flow Control	support
Jumbo Frame	16k bytes
Interface
Copper Port	10/100/1000M Auto-negotiation, RJ45 auto-MDI/MDI-X Cat5/Cat5e/Cat6, ≤100m
Fiber Port	1.25G/155M SFP, 1.25G SC/FC/ST optional OS1/OS2 ≤120km; OM1/OM2 ≤550m
Power Port	DC socket, φ2.5mm
LED indicators	PWR, GX, GE,FL/A,TL/A
Dip-switch	LFPT, Flow control, Jumbo frame, Forced 100M
Electrical characteristics
Input Voltage	5-12VDC
Input Current	Max. 0.25A
Power Consumption	≤2W
Physical characteristics
Dimension	94x71x26mm
Protection	IP30
Installation	Chassis mounted,wall-mounted
Environment
Working Temperature	-20~60ºC
Storage Temperature	-40~85ºC
Relative Humidity	5%~95% (no condensation )



 Order Information

Model	Description
AOM-2100D-SFP	10/100/1000M, SFP slot
AOM-2100D-M05	10/100/1000M, MM 850nm SC 550m
AOM-2100D-S20	10/100/1000M, SM 1310nm SC 20km
AOM-2100D-A20	10/100/1000M, SM TX1310/RX1550nm SC 20km
AOM-2100D-B20	10/100/1000M, SM TX1550/RX1310nm SC 20km
AOM-2100DP-SFP	10/100/1000M (PoE) , SFP Slot
AOM-2100DP-M05	10/100/1000M (PoE), MM 850nm SC 550m
FC/ST available; 40/60/80/120km available 24W, 100-240Vac input, 48Vdc 0.5A output power adaptor as default.



Related Products

Model	Description
Media Converter Chassis (for AOM-2100D series only)
AOR-14-2A	14 Slot Chassis with double AC220V Power Supply
AOR-14-2D	14 Slot Chassis with double DC48V Power Supply
