FTTH Access Terminal Box



Overview

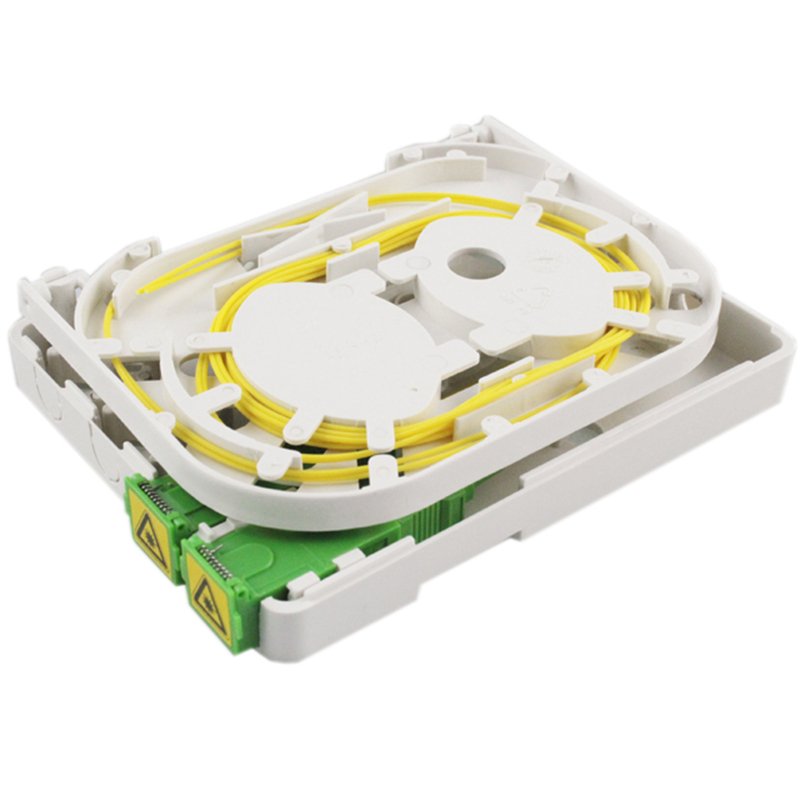

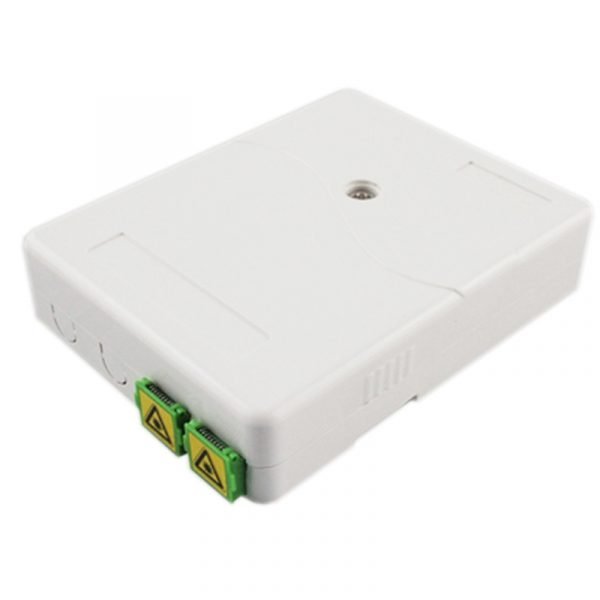

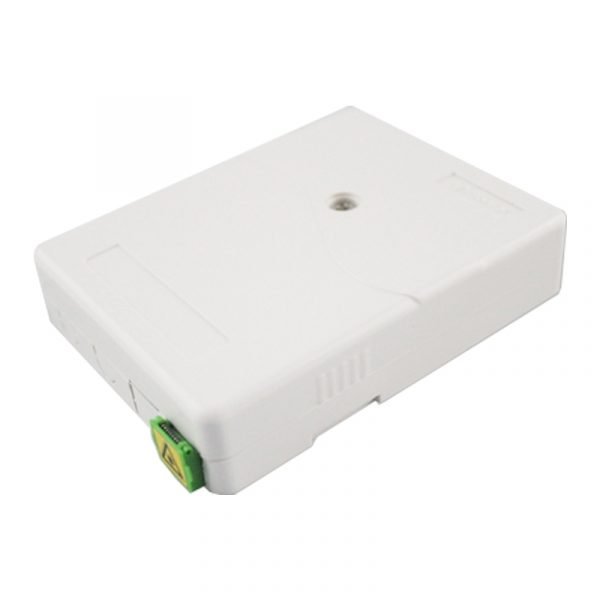

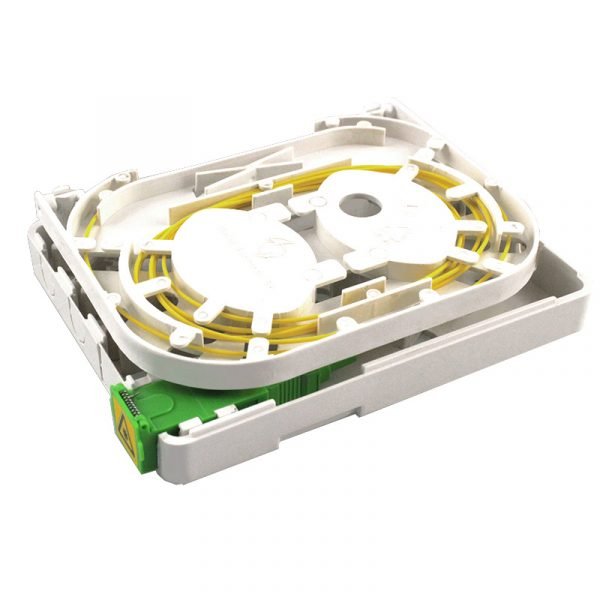

ATB3103 is an indoor access terminal box also called FTTX faceplate or FTTH terminal box, applied in the FTTX network to connect the drop cable and ONU devices through fiber port. ATB3103 covers the capacity of 1core, 2cores and supports splicing, mechanical connection and FMC, wall mounted installation. We can offer SC adapter with Shutter to install in the ATB3103 box as option.



Features

• Excellent ergonomics design, graceful appearance and convenience operation
• Plug fiber without having to open the shell, easily accessible fiber operation
• Vertically downward port to avoid causing personal injury
• White color, graceful style and good adaptability to environment.
• Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
• Friendly operation interface, high reliability
• Introductions clear, effectively prevent the miss-operation.
• Low construction cost



Application

• Widely used in FTTH access networks
• Telecommunication Network
• CATV Networks
• Data Communication Networks



Technical Specifications

Parameter	Specifications
Size (H×W×D) mm	82.5×116×24.5
Color	White
Material	ABS
Capacity (cores)	1, 2
Connect Models	Splicing, Mechanical Connector, FMC
Installation Models	Wall Mounted
Protective Level	IP4X
Pigtail	G.657 Ф0.9mm, 0.5m Or customer request
Drop cable (Flat)	Indoor Flat Drop cable 2mm×3mm
drop cable (Round)	Φ5mm～Φ7mm
Curvature Radius (mm)	≥15
Working Temp.	-25℃～+60℃
Storage Temp.	-40℃～+70℃
Humidity	93%(+30℃)
Air Pressure	70KPa～106KPa
Standards	ITU-T L.51; JB-T8593-1997 EN 60950-1; UL94; IEC 60529



Order Information

Model	Adaptor	Pigtail	Capacity (Core)
ATB3103-1	–	–	1
ATB3103-1/SC/U/S	1x SC/UPC SX	1x SC/UPC SX 0.9mm	1
ATB3103-1/SC/A/S	1x SC/APC SX	1x SC/APC SX 0.9mm	1
ATB3103-2	–	–	2
ATB3103-2/SC/U/S	2x SC/UPC SX	2x SC/UPC SX 0.9mm	2
ATB3103- 2/SC/A/S	2x SC/APC SX	2x SC/APC SX 0.9mm	2
