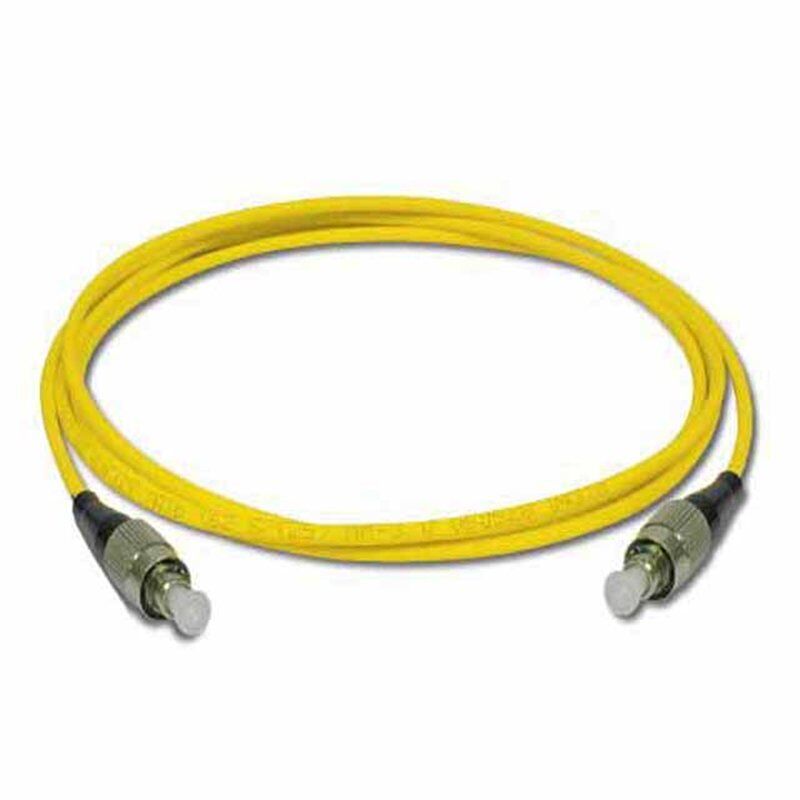

FC-FC Fiber Optical Patch Cord



FC Fiber Optic Patch Cord stands for Fixed Connection. It is fixed by way of a threaded barrel housing. FC-FC patch cords are typical in test environments and for single mode applications. FC connectors were designed for use in high-vibration environments. The FC connector is the most popular connector used today.It can be seen in every area of the communications environment, from a telecoms distribution room to a LAN closet the FC has set the standard for optical fiber connectors.



  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC61300
  • 100% optic test (Insertion Loss & Return Loss)
  • 9mm, 2.0mm and 3.0mm cable optional
  • Simplex / Duplex Optional
  • Flexible boot are available



  • High Speed and volume Fiber Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fiber Optic Instrumentation


Technical Specifications

Patch Cord/Pigtail Spec
Type Single mode(UPC) Single mode(APC) Multi-mode (PC)
Insertion loss ≤0.2 dB ≤0.2 dB ≤0.2 dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Repeatability ≤0.1dB
Durability ≥1000matings
Operating Temperature -40 ºC to +80 ºC
Tensile Strength(N) ≥90N (φ3), ≥70N (φ2)
