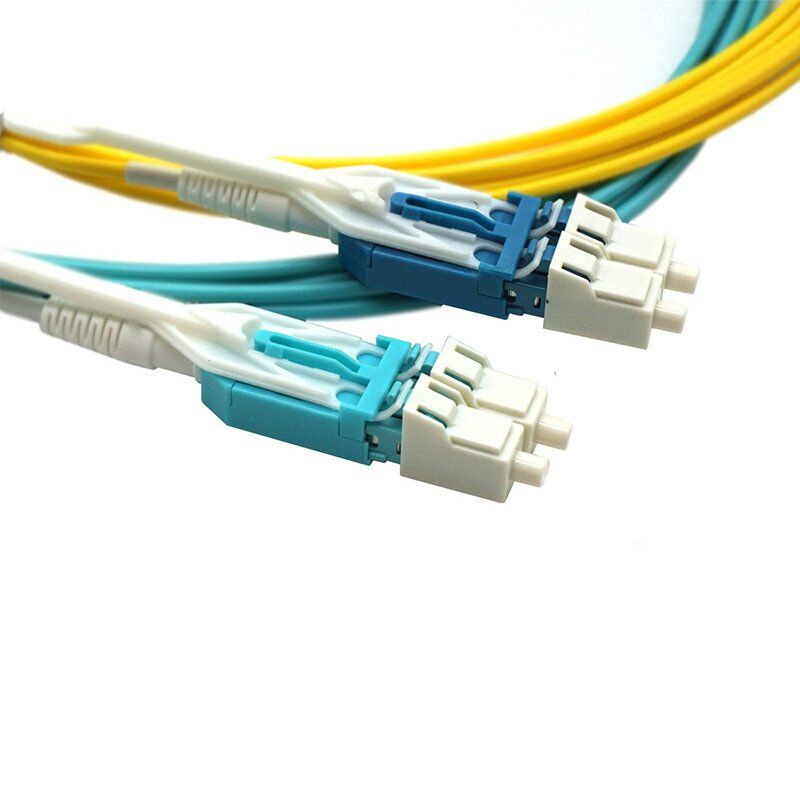

LC-LC Uniboot Fiber Optical Patch Cord



AOA LC uniboot patch cords with integrated push/pull tabs are the ideal solution for high-density patching environments. The unique push-pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low-profile uniboot connector design utilizes round 2 mm duplex cord for neater and denser cable management. For multi-mode OM4 and OM3 applications, low-loss connectors are used to offer the lowest possible channel loss.



  • Integrated push pull tab for ease of access and handling
  • Low profile design reduces patching footprint
  • Round 2 mm DX fiber design minimizes patch cable volume and enhances looming neatness
  • Low loss, high performance multi-mode connectors to minimize channel losses



  • Termination enclosure to equipment patching
  • Equipment to equipment patching
  • Cross-connect patching (for high density patching see also AOA’s MTP Low Loss Cabling System)


Technical Specifications

Patch Cord/Pigtail Spec
Type Single mode(UPC) Single mode(APC) Multi-mode (PC)
Insertion loss ≤0.2 dB ≤0.2 dB ≤0.2 dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Repeatability ≤0.1dB
Durability ≥1000matings
Operating Temperature -40 ºC to +80 ºC
Tensile Strength(N) ≥90N (φ3), ≥70N (φ2)
