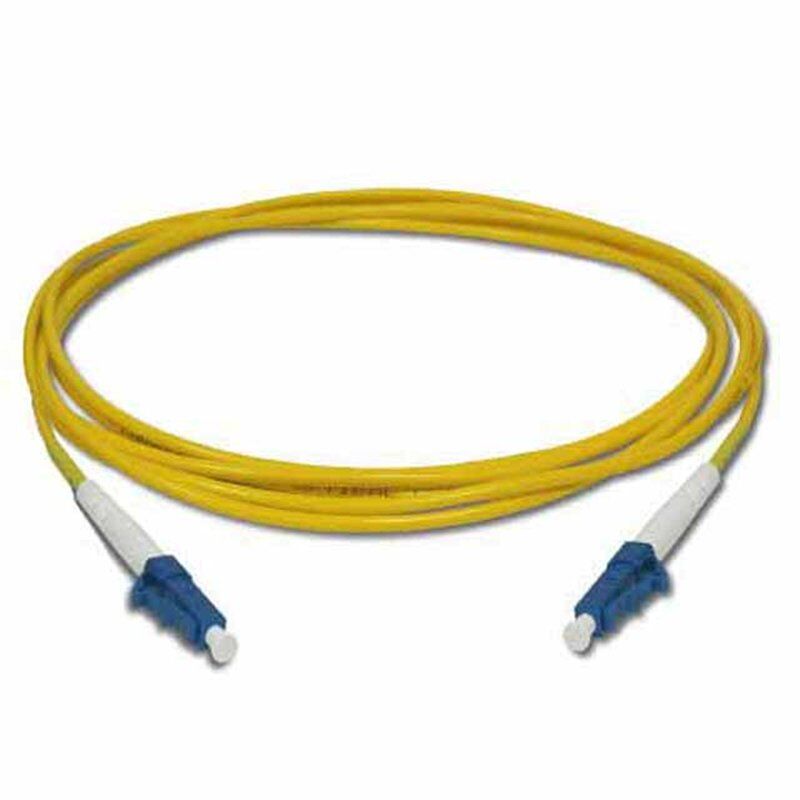

LC-LC Fiber Optical Patch Cord



LC Fiber Optic Patch Cord stands for Lucent Connector. The LC is a small form-factor fiber optic connector. LC connector uses a 1.25 mm ferrule, half the size of the ST. Also, it is a standard ceramic ferrule connector. The LC has good performance and is highly favored for single mode.



  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC61300
  • 100% optic test (Insertion Loss & Return Loss)
  • 9mm, 2.0mm and 3.0mm cable optional
  • Simplex / Duplex Optional
  • Flexible boot are available



  • High Speed and volume Fiber Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fiber Optic Instrumentation


Technical Specifications

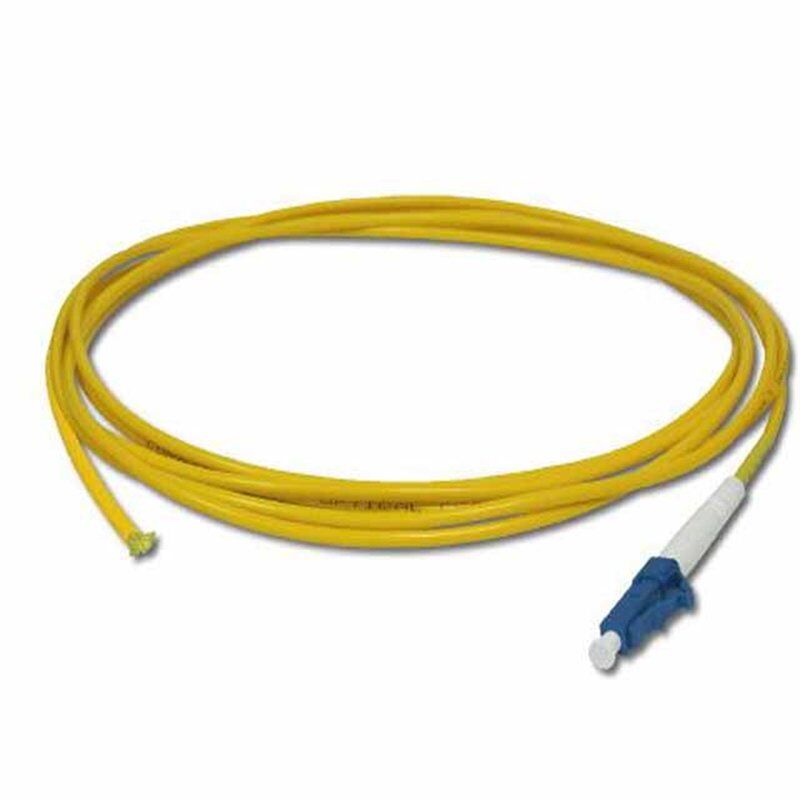

Patch Cord/Pigtail Spec
Type Single mode(UPC) Single mode(APC) Multi-mode (PC)
Insertion loss ≤0.2 dB ≤0.2 dB ≤0.2 dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Repeatability ≤0.1dB
Durability ≥1000matings
Operating Temperature -40 ºC to +80 ºC
Tensile Strength(N) ≥90N (φ3), ≥70N (φ2)
