Fiber Terminal Box

4 Port FTTH panel



Overview

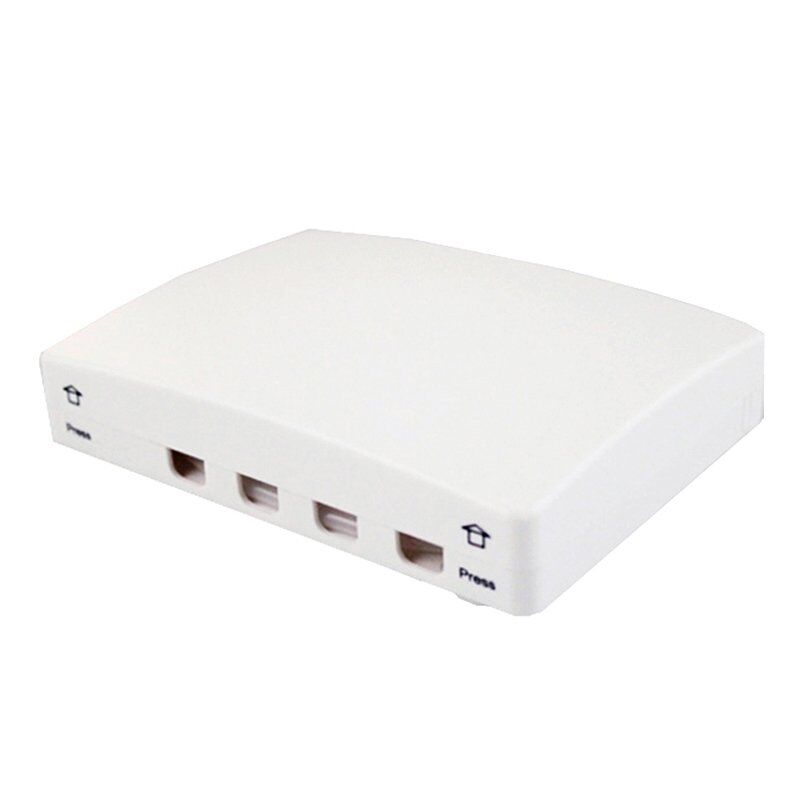

FTB-04 is an indoor terminal box called FTTX faceplate or FTTH terminal box, applied in the FTTX network to connect the drop cable and ONU devices through the fiber port. FTB-04 covers the capacity of 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation.



Features

• Small size, light weight, pleasing in appearance

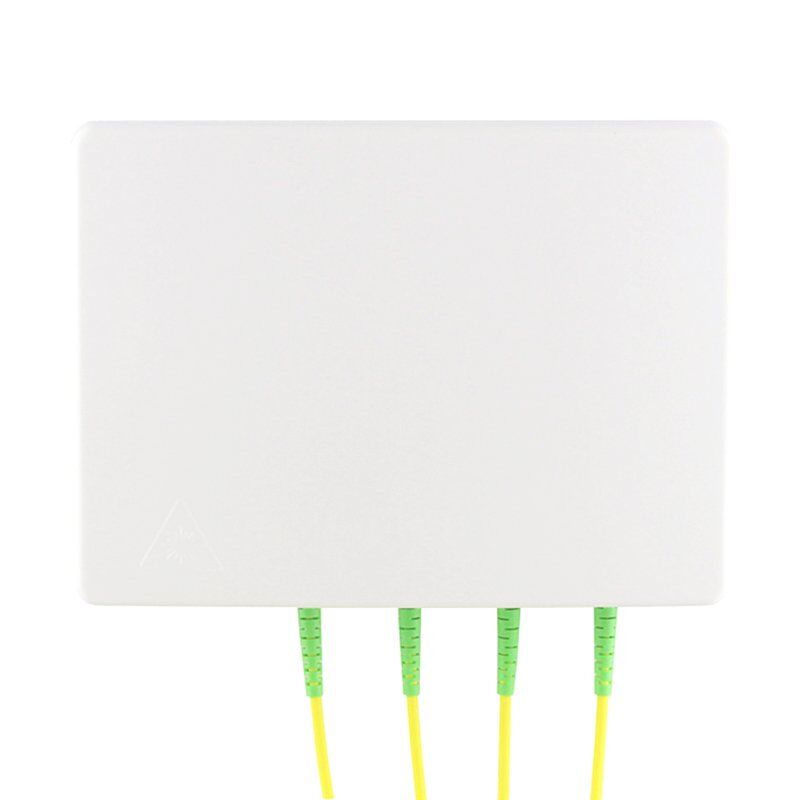

• Wall mounted with mechanical protection function
• Max fiber capacity 4 fibers,4 adapter output
• Available for FC, SC, ST, LC adapters
• Hinge and convenient press-pull button lock design



Application

• Widely used in FTTH access network.
• Telecommunication Networks
• CATV Networks
• Data communications Networks
• Local Area Networks



Order Information

Model	Dimension	Cable Diameter(mm)	Max capacity	Material
FTB-04	150*110*30 mm	Ф5~Ф10	4 cores	Plastic
