FTB-104A Fiber Terminal Box

Fiber Terminal Box

4/8 Port FTTH terminal box in metallic materials

Share on

Fiber Terminal Box

4/8 Port FTTH terminal box in metallic materials

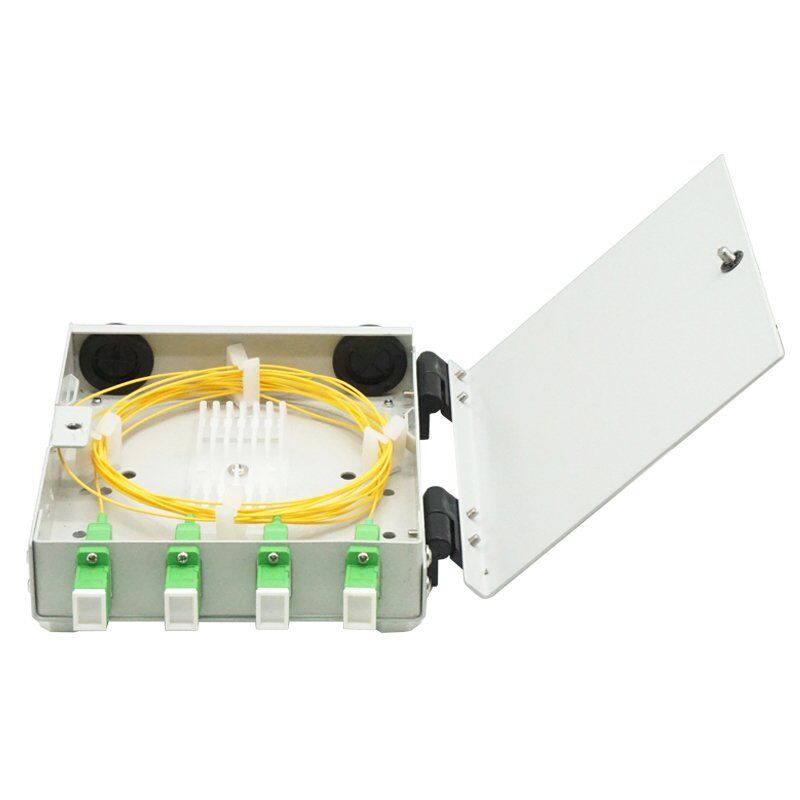

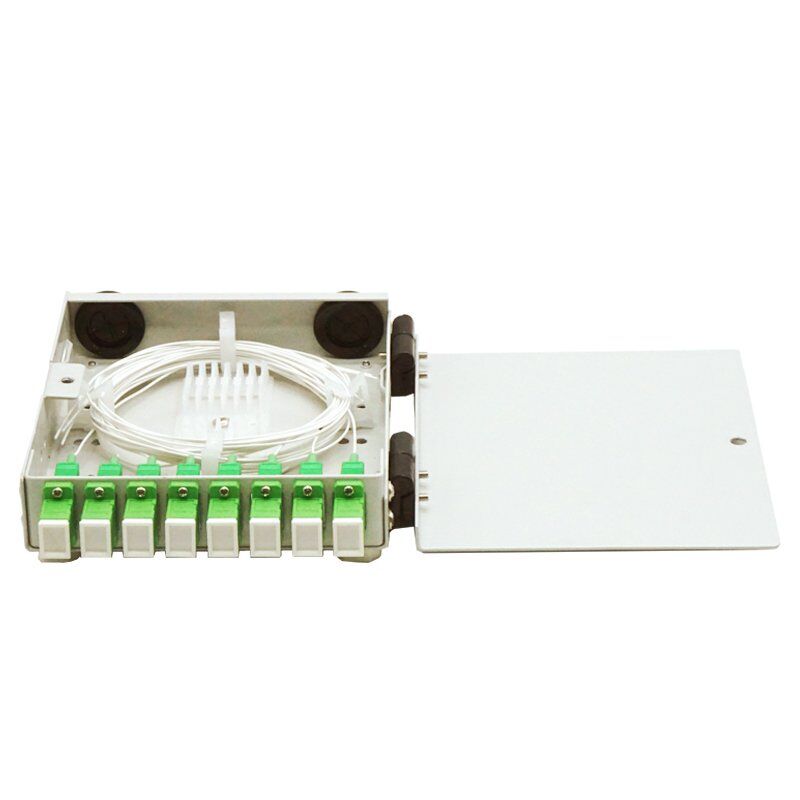

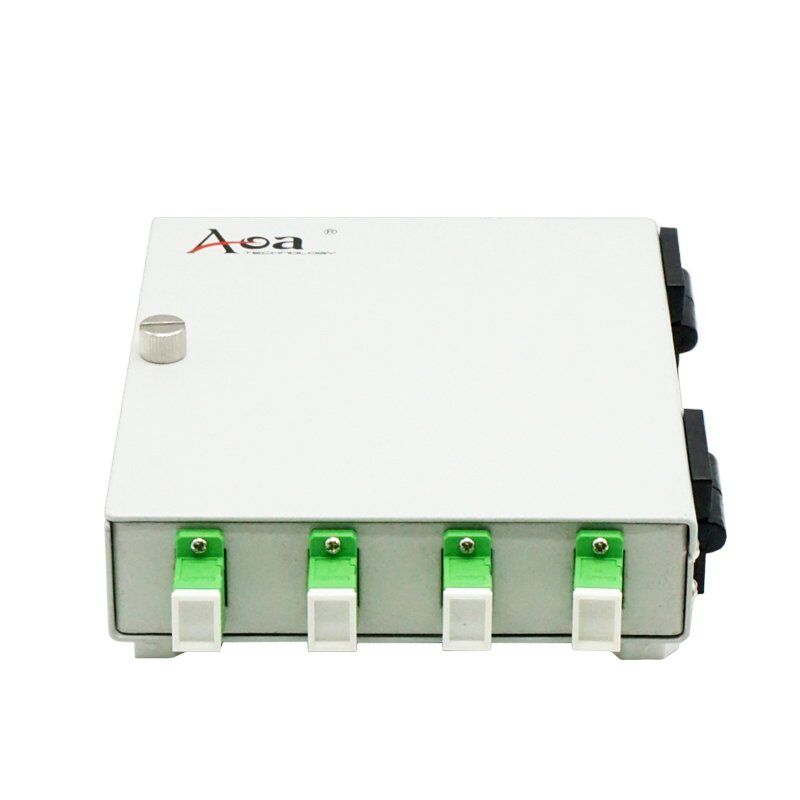

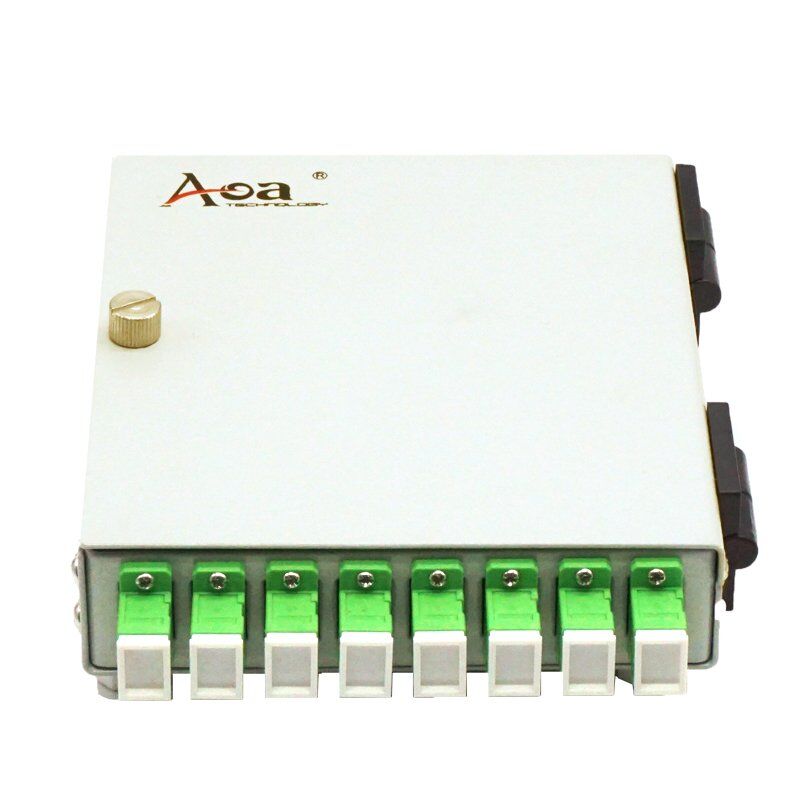

FTB-104A, FTB-108A Series fiber terminal box, also called FTTH terminal box, or distribution box, is used in the end termination of residential buildings and villas, to fix and splice with pigtails. There are 4 ports and 8 ports type box available. The wall-mounted and compact size design is convenient for installation. The fiber terminal box is in metallic materials, but is small in size and light weight; that is convenient for installation and saves the shipping charge.



  • Small size, light weight, pleasing in appearance
  • Wall mounted installation
  • Max fiber capacity 4~8 fibers, 4~8 adapters output
  • Available for SC, LC(duplex) adapters
  • Hinge and convenient press-pull button lock design



  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks


Order Information

Model Dimension Cable Diameter(mm) Max capacity Material
FTB-104A 115*135*41.5 mm Ф5~Ф10 4 cores Metallic
FTB-108A 115*135*41.5 mm Ф5~Ф10 8 cores Metallic
