JYS Rugged Fiber Connector
Outdoor Fiber Optic Patch Cord

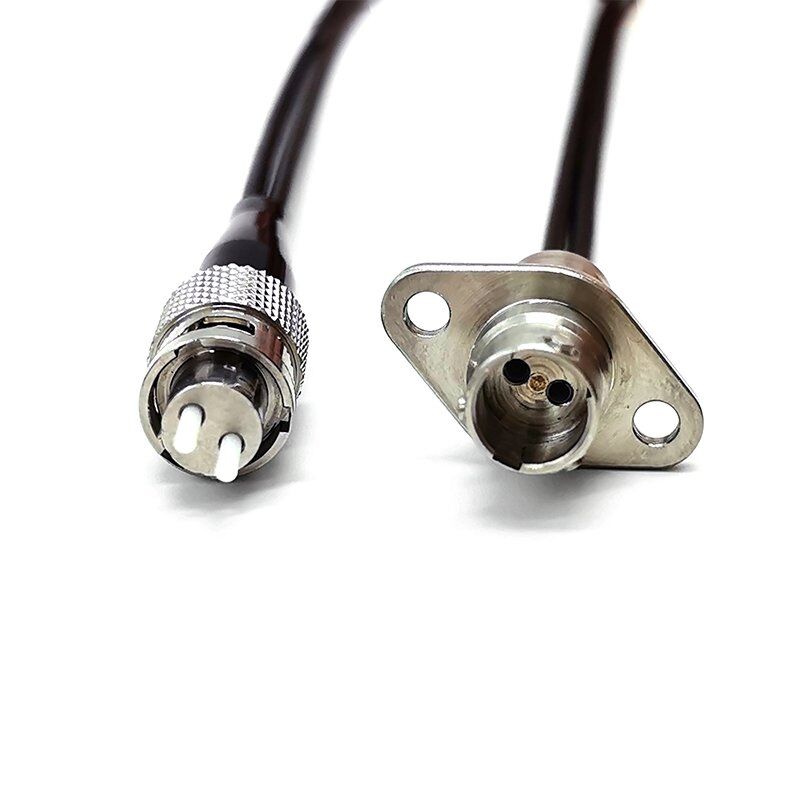

JYS ruggedized fiber Connector
Share on
Outdoor Fiber Optical Patch Cord
JYS ruggedized fiber Connector
Overview
JYS series miniaturized fiber optic connector adopts Φ1.25mm standard ceramic ferrule, snap type locking connection, miniaturized metal shell, and can connect two or four optical fibers at the same time. The JYS optical connector is mainly used to replace FC, LC, and other civilian connectors.
Features
- Three-key positioning with blind insertion and anti-misplacement function
- Quick bayonet connection
- Outer shells can be selected from different materials and plating suitable for
- Ceramic pin and ceramic sleeve for centering and positioning, PC grinding.
Applications
- Industrial outdoor applications
- Power Systems
- Airborne communication
- Marine telecommunication
Technical Specifications
| Parameter | Specifications |
| Insertion Loss | SM: ≤0.6dB MM: ≤0.5dB |
| Return Loss | SM: ≥50dB |
| Insulation Resistance | 500VDC ≥5000MΩ(normal environment) |
| Mechanical Behavior | Plug pull≧500N
Socket pull≧30N |
| Mechanical life | 1000 times |
| Protection level | IP68 |
| Operating temperature | -45℃ ~ 85℃ |
Ruggedized Optical Cable Assemblies Applications
