MPO/MTP Patch Cords
MPO/MTP SM OS2 High Density Patch Cords
Share on
Overview

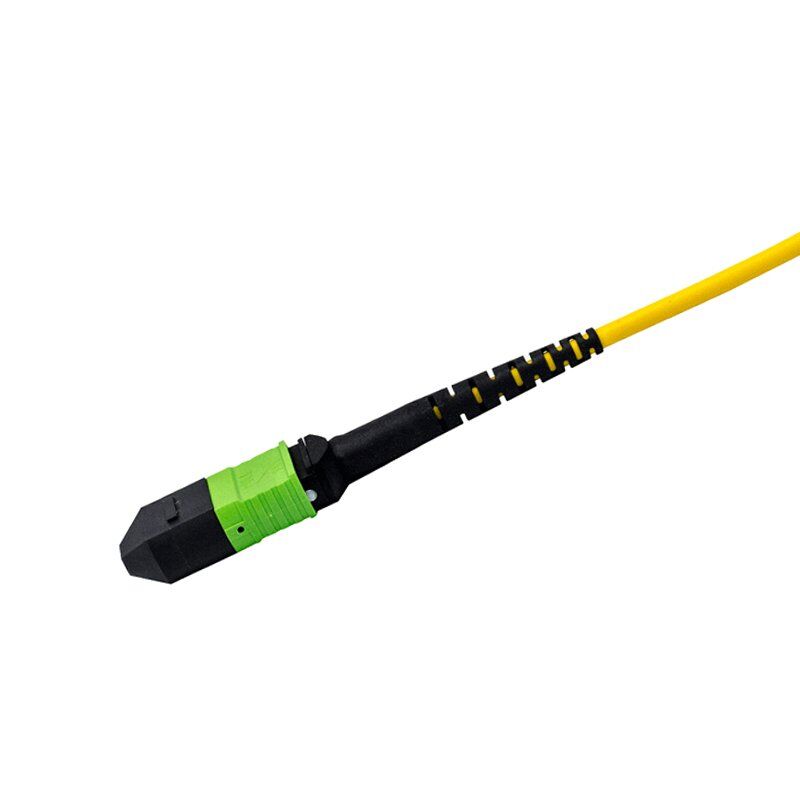

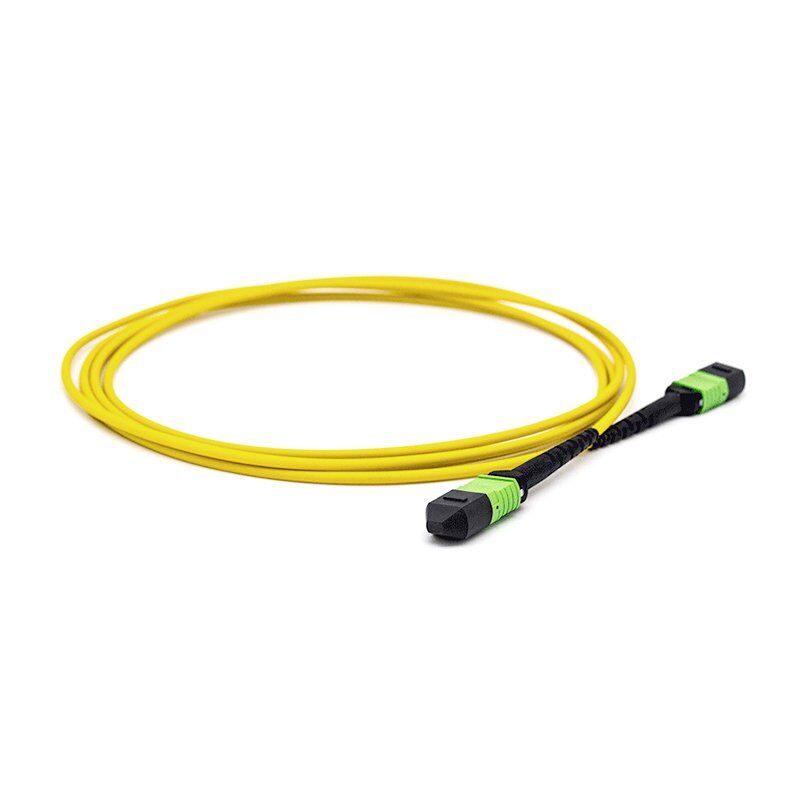

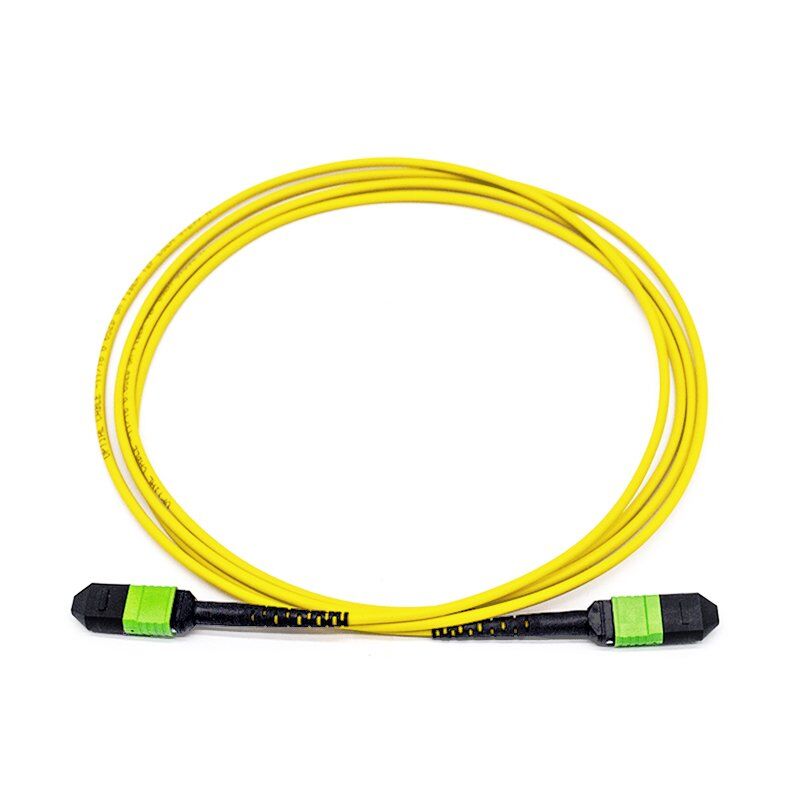

MPO/MTP fiber optic patch cord is a multi-fiber patch cord with fiber count of 8F/12F/24F. Fiber optics MPO connectors use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating. The MPO/MTP solution was designed for data center applications requiring quick infrastructure deployment such as main, horizontal, and zone distribution areas. AOA MPO patch cords and MTP patch cords are in Low insertion, high precision, comply with the standard of IEC, EIA/TIA, and Telecordia.
Features
Applications
Technical Specifications
MTP MPO Optical Performance
Type | Unit | Description | ||||
MPO/MTP connector | — | Standard SM MT | Low Loss(Elite) SM MT | Standard MM MT | Low Loss(Elite) MM MT | |
Insertion Loss | Typical | (dB) | 0.35 | 0.20 | 0.35 | 0.20 |
Max | (dB) | 0.75 | 0.35 | 0.60 | 0.35 | |
Return Loss | (dB) | APC≥60, PC≥50 | ≥20 for PC | |||
Male / Female | — | Male: With Pins Female: Without Pins | ||||
Wavelength | (nm) | Single Mode: 1310/1550 Multi-mode: 850/1300 | ||||
Transmission Distance | (m) | OM4: 150m(40/100G), 500m(10G) OM3: 100m(40/100G), 300m(10G) |
Geometry Parameters
Type | Unit | Description | |
Single Mode | Multi-mode | ||
Radius of curvature X | (mm) | Min 2000 | Min 2000 |
Radius of curvature Y | (mm) | Min 5 | Min 5 |
Fiber Height | (nm) | 1000~3500 | 1000~3500 |
Max.Diff.Height All | (nm) | Max 50 | Max 50 |
Max.Diff.Height Adjl | (nm) | Max 300 | Max 300 |
Tilt Angle X | (°) | -0.2~+0.2 | -0.2~+0.2 |
Tilt Angle Y | (°) | PC:-0.2~+0.2;APC:7.8~8.2 | -0.2~+0.2 |
Core Dip | (nm) | N/A | -100~+200 |
