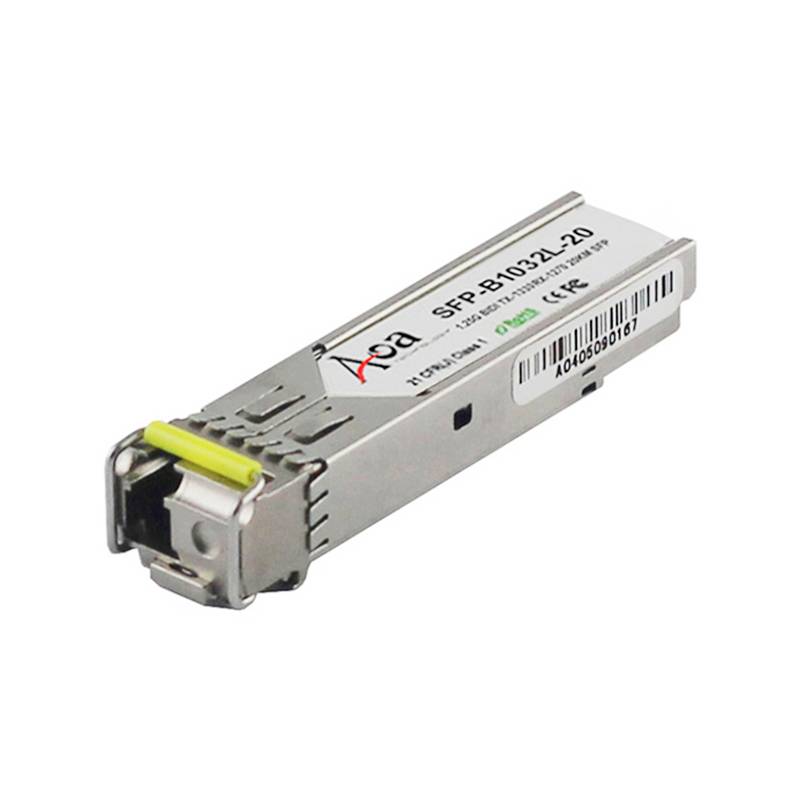

SFP-B1032L-20

10Gbps SFP+ Transceiver Bi-Di TX1330/RX1270nm 20KM LC

Features

• Supports up to 10.7Gbps bit rates
• 1330nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
• Hot-pluggable SFP+ footprint
• Real Time Digital Diagnostic Monitoring
• Single +3.3V power supply
• Compatible with RoHS
• Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃

Application

• 10Gbps Optical systems
• 10GBASE-LR at 10.3125Gbps
• 10GBASE-LW at 9.953Gbps
• LTE systems
• Other Optical links

Standard

• Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
• Compliant with IEC
• Compliant with IEEE 802.3ae

Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Recommended Operating Conditions

Ordering information
