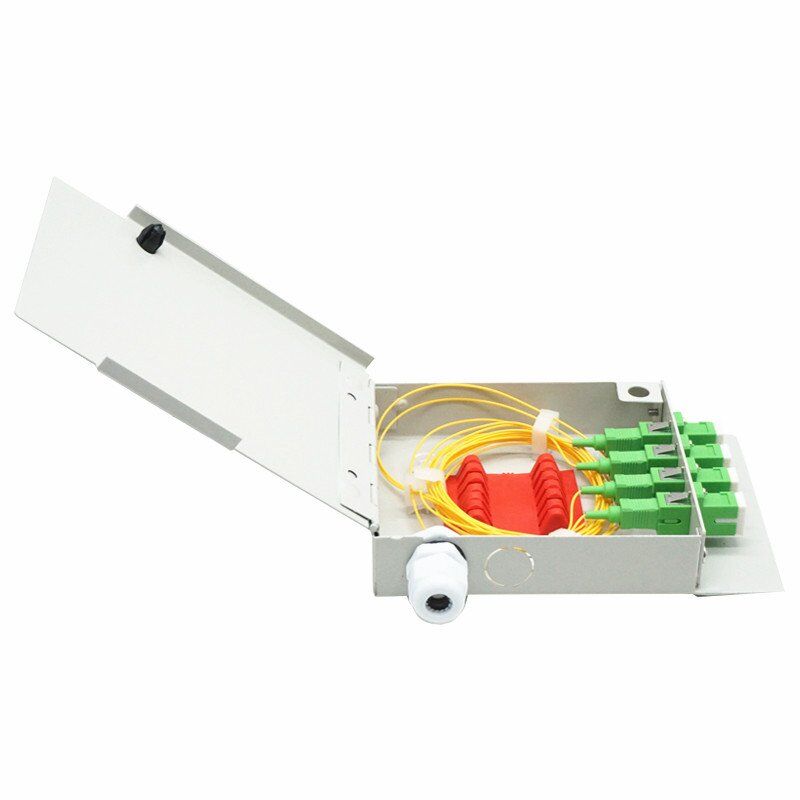

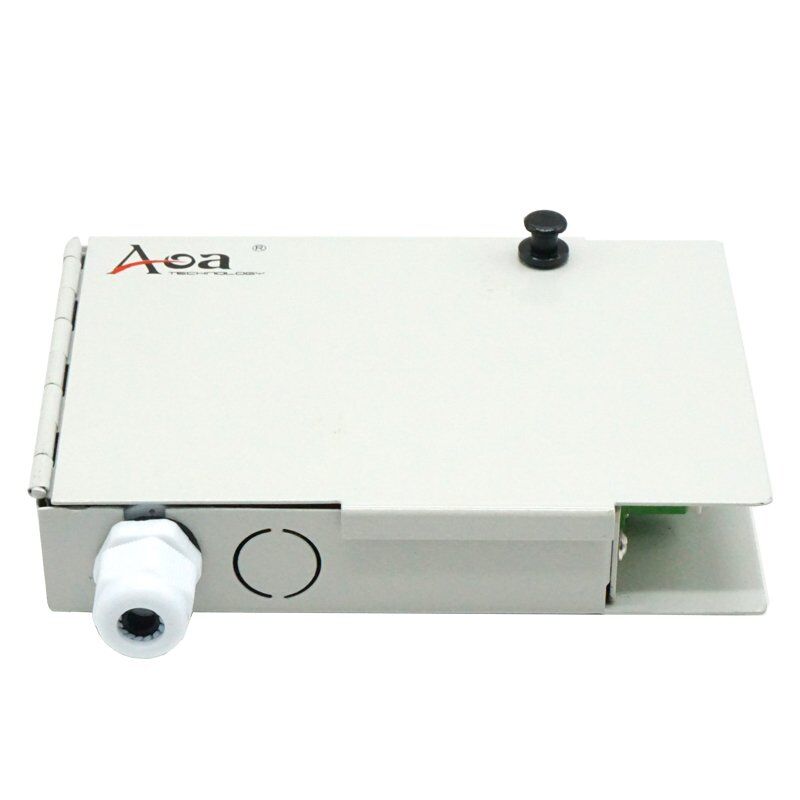

FTB-104 Fiber Terminal Box
Fiber Terminal Box
4/8/16 Port FTTH terminal box in metallic materials
Share on
Fiber Terminal Box
4/8/16 Port FTTH terminal box in metallic materials
Overview
FTB-104 FTB-108 FTB-116 Series fiber terminal box, also called FTTH terminal box, or distribution box, is used in the end termination of residential buildings and villas, to fix and splice with pigtails. There are 4 ports, 8 ports, 16 ports type boxes available. The wall-mounted and mechanical protection design is convenient for installation. The fiber terminal box is in metallic materials, but is small in size and light weight; that is convenient for installation and saves the shipping charge.
Features
- Small size, light weight, pleasing in appearance
- Wall-mounted with mechanical protection function
- Max fiber capacity 4~16 fibers,4~16 adapters output
- Available for SC, LC(duplex) adapters
- Hinge and convenient press-pull button lock design
Application
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Order Information
| Model | Dimension | Cable Diameter(mm) | Max capacity | Material |
| FTB-104 | 140*105*27 mm | Ф5~Ф10 | 4 cores | Metallic |
| FTB-108 | 200*148*30 mm | Ф5~Ф10 | 8 cores | Metallic |
| FTB-116 | 245*200*48 mm | Ф5~Ф10 | 16 cores | Metallic |
